SKODA

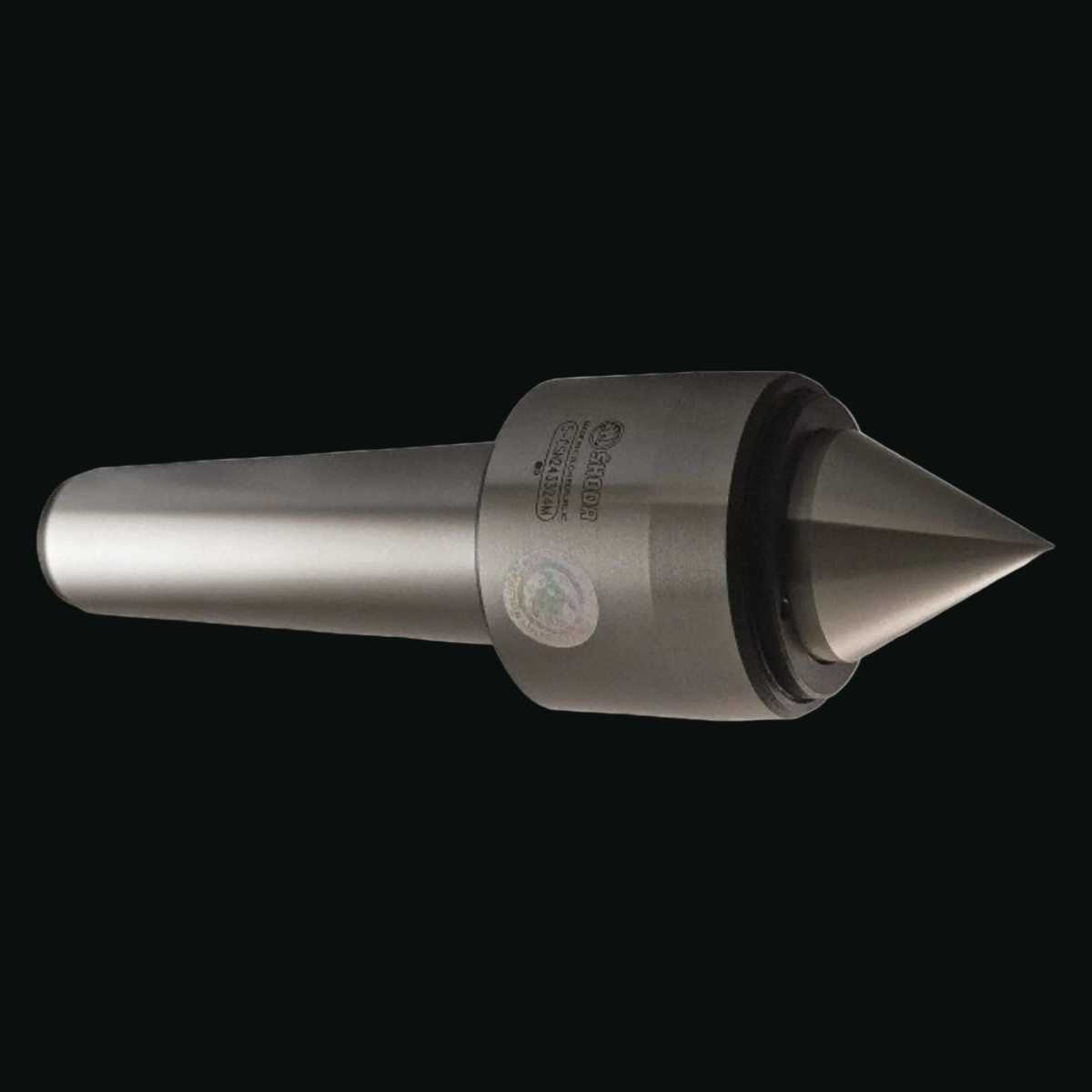

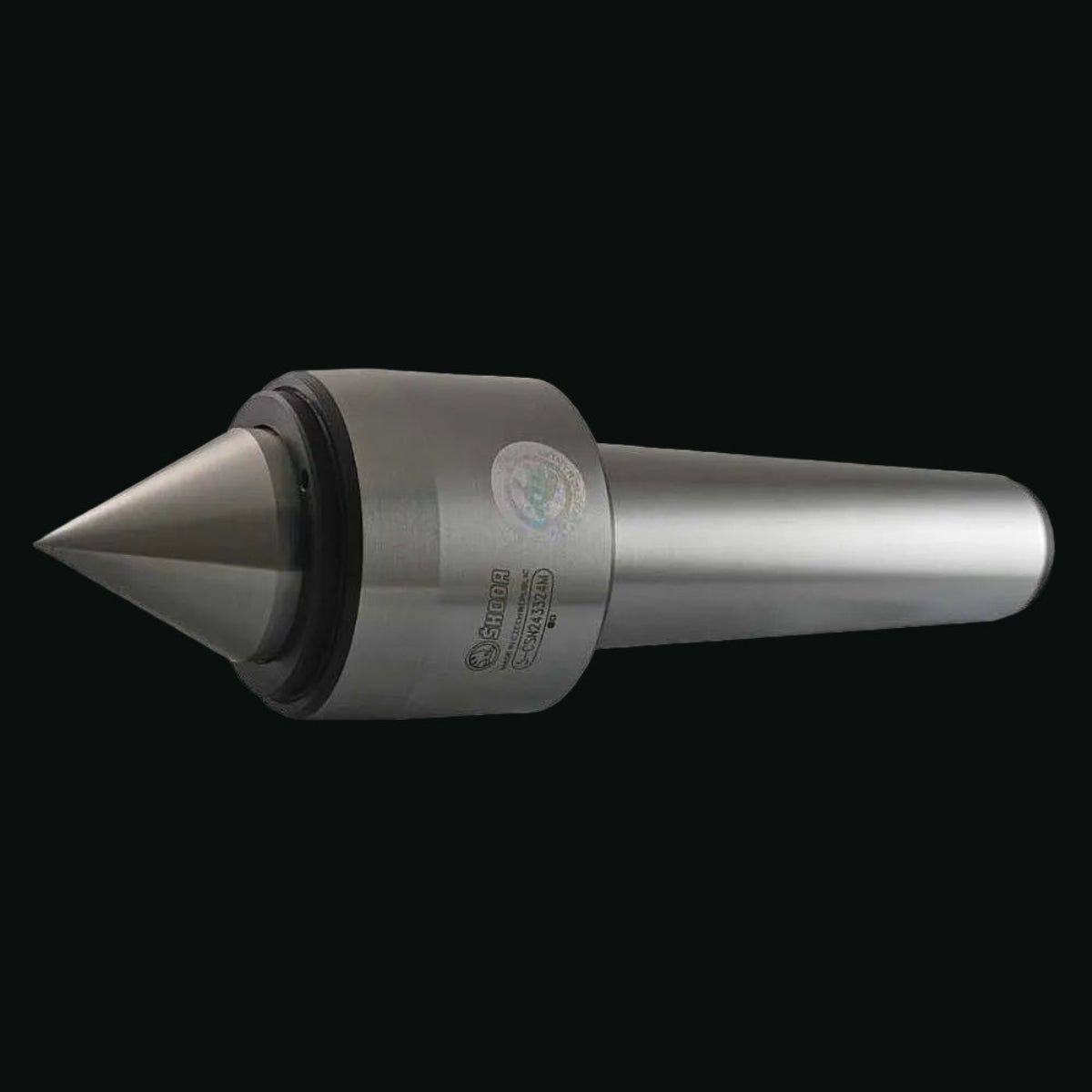

Live Center: Morse Taper Shank, 55.0000 mm Head Dia, 2.2800" Head Length
Live Center: Morse Taper Shank, 55.0000 mm Head Dia, 2.2800" Head Length
Regular price
$520.36 USD
Regular price
Sale price
$520.36 USD
Quantity
Couldn't load pickup availability
Live Center: Morse Taper Shank, 55.0000 mm Head Dia, 2.2800" Head Length
2860.00 lb Max Workpiece, 4000 Max RPM, 55.00 mm Point Dia, 37.50 mm Point Length, Standard Point
MSC# 54824784
Mfr# 310120
Specifications
| Shank Type: Morse Taper | Bearing Type: Roller |
| Material: Steel | Taper Size: MT4 |
| Maximum Workpiece Weight (Lb.): 2860.00 | Point Style: Standard |
| Point Diameter (Decimal Inch): 2.1653 | Point Diameter (mm): 55.00 |
| Tip Diameter (mm): 35.000 | Tip Diameter (Decimal Inch): 1.3770 |
| Point Length (Decimal Inch): 1.4763 | Point Length (mm): 37.50 |
| Accuracy (Decimal Inch): 0.000200 | Accuracy: 0.00 in; 0.01 mm |
| Tip Length (Decimal Inch): 1.4763 | Load Capacity: 2860 lb |
| Head Diameter (Decimal Inch): 2.1653 | Head Diameter (mm): 55.0000 |
| Shank Diameter (Inch): 1-1/2 | Head Length (Decimal Inch): 2.2800 |
| Shank Length (Decimal Inch): 3.8750 | Overall Length (Decimal Inch): 7.6377 |
| Overall Length (mm): 194.0000 | Included Angle: 60.00 |
| Maximum RPM: 4000 | Carbide-tipped Point: No |
| Features: Dirt or Swarf; Two Specially Designed Adjustable Needle-Roller Bearings; Complete Protection of Bearings Form The Ingress of Coolant; Prevents Loss Of Lubricant; Rotating Spindle; Heavy-Duty Ball Thrust Bearing | Gage Line Diameter (Decimal Inch): 1.2310 |
| Gage Line Diameter (mm): 31.26 | UNSPSC Code: 23153103 |
| Country of Origin: Czechia |
